Ares J20
Omni-directional UAV Jammer
✓ Comprehensive Models Interference
Supports interference of mainstream consumer drones such as DJI, Autel, Hubsan, as well as FPV, WiFi drones, etc
✓ Long Jamming Distance
Based on excellent hardware structure and software algorithm, Ares J20 supports up to 3km jamming distance with omni-directional.
✓ Optional Jamming Frequency
Complete frequency coverage from 300MHz to 6GHz, and freely configure one or more jamming frequency bands through software.
Power Plant
Critical Facility
Military Unit
Event Security
Camp Protection
Important Even

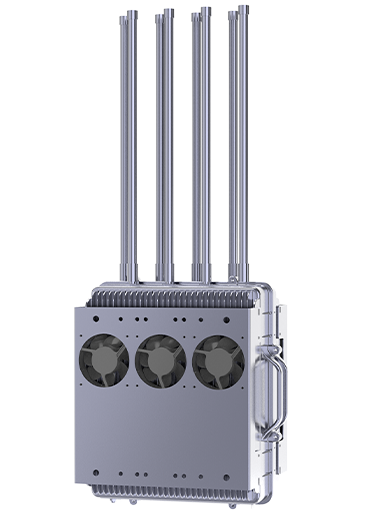

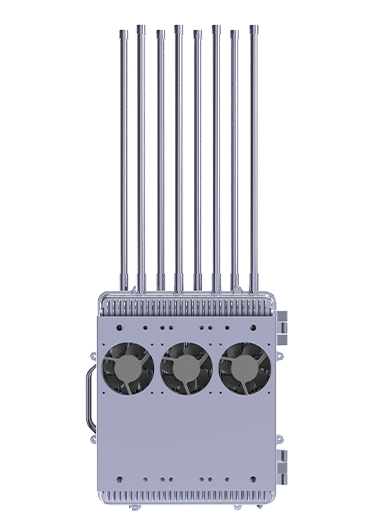

Ares J20
Omni-directional radio jammers suppress and interfere with the control link, navigation link and image transmission link of drones by emitting electronic jamming signals of different frequencies. lt can force drones to land automatically or drive them away to ensure the safety of airspace. lt is a security guard for large-scale events and important places.
Works on general commercial drones, model aircraft, FPV, DIY drones, etc.
Ultra long interference radius up to 3KM, covering 360° omni-directional
Continuously and stably emit strong interference signals
Function
Working Frequency
400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.8GHz, 5.1-5.9GHz.
Interference Radius
Max 3km (depending on the environment and UAV model)
Working Angle
Horizonal 360°
Power Consumption
Max 600w
Appearance
Protection Level
IP65
Working Temperature
-40℃～+60℃
Weight
30kg
Dimension
489mm*461mm*233mm
