Argus C04
Photoelectric
✓ Long Effective Range
Visible tracking distance up to 4km, thermal tracking distance up to 2km
✓ Excellent Tracking Performance
Automatic tracking module designed with multiple target acquisition and tracking algorithms
✓ Strong Load Capacity
Equipped with visible light camera, large-aperture thermal imagers, follow-up laser illuminators, optional laser distance measuring device, digital compass, etc.
Airport
Critical Facility
Military Unit
Petrochemical
Power Plant
Event Security

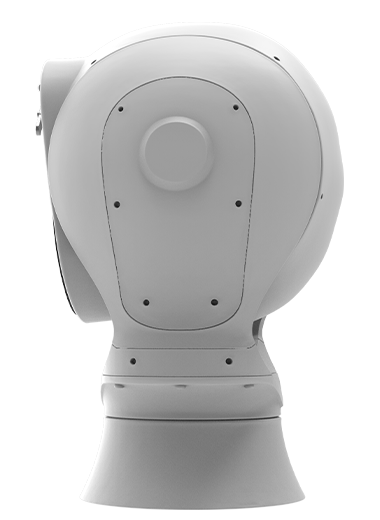

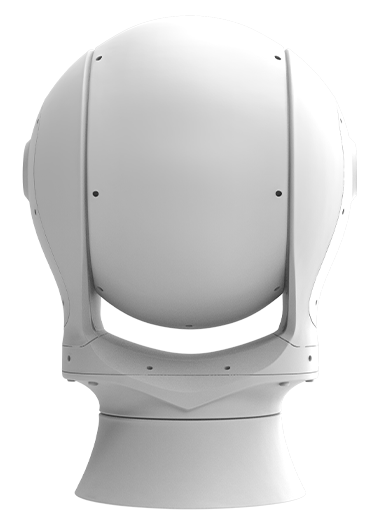

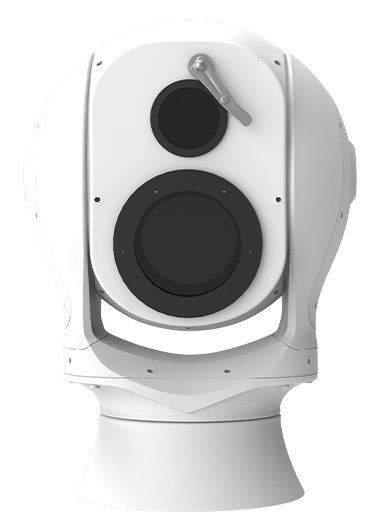

Argus C04
The photoelectric identification and tracking camera adopts a miniaturized concealed structure design to achieve positioning, tracking and identification of small UAV targets.
Function
Effective Range
Visible light:tracking distance ≤4000m, identification distance ≤3000m; Thermal:tracking distance ≤2000m, identification distance ≤800m
Thermal Lens
Fifth generation VOx oxide uncooled detector, resolution 640x512, 22-230mm
Visible Lens
2M pixel high-definition module, 12.5-775mm zoom lens
Intelligence Analysis
Intrusion detection, auto tracking, UAV identification
Gimbal
0.01°high precision positioning, rotation speed 80°/s, minimum speed 0.01°/s
Azimuth rotation range 0°~360°, pitch rotation range -90°~+90°
Protocol
Support Onvif/RTSP/28181
