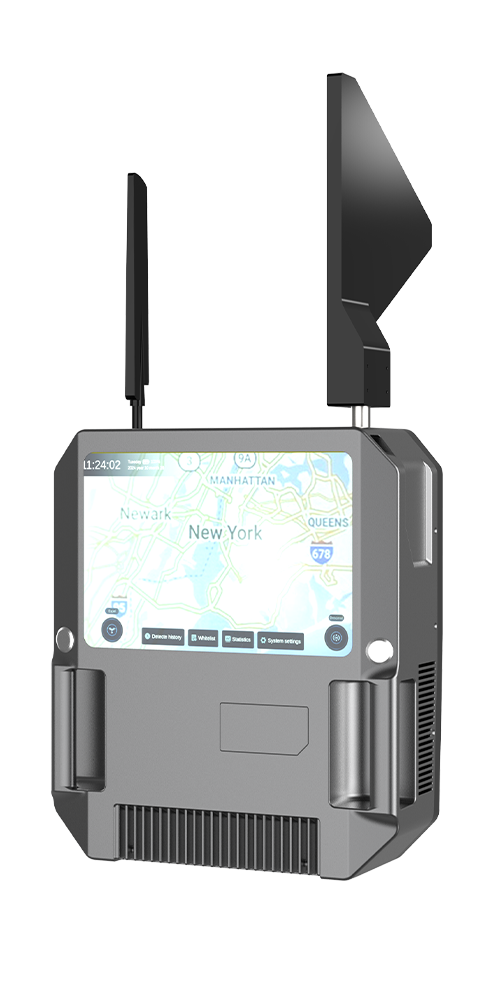

Thor M10
Portable Multi-Mission Defender
✓ Detector and Jammer - 2 in 1
High Integration, a single device can do drone detection and countermeasure both
✓ Comprehensive UAV Detection
360° omni-directional UAV detection, at the radius distance of 3KM
✓ Long Jamming Distance
Jamming distance up to 2km in open environment, and optional suppression frequency
Camp Protection
Event Security
Emergency Response
Train Station
Critical Facility
Petrochemical
Thor M10
Thor M10 integrates detection, tracking, positioning and countermeasure functions. A single device can realize the whole process of drone control.
Function
Detection Frequency
433M/800M/900M/1.4G/2.4G/5.2G/5.8G
Direction Finding Accuracy
≤30°(spectrum), ≤0.5°(protocol)
Detection Distance
Max 3km
Jamming Frequency
800M/900M/1.2G/1.4G/1.6G/2.4G/5.2G/5.8G
Jamming Distance
Max 2km
Response Time
≤2s
Azimuth Accuracy of Detection
≤3°
Apperance
Screen
10.1 inch, touchable
Working Time
Detection standby time: 1.5hours;
Countermeasure continuously time: 15mins
Countermeasure continuously time: 15mins
Power Supply
Built-in battery/ Power adapter
Power Consumption
Max 400w
Protection Level
IP65
Working Temperature
-20℃～+55℃
Weight
8KG
