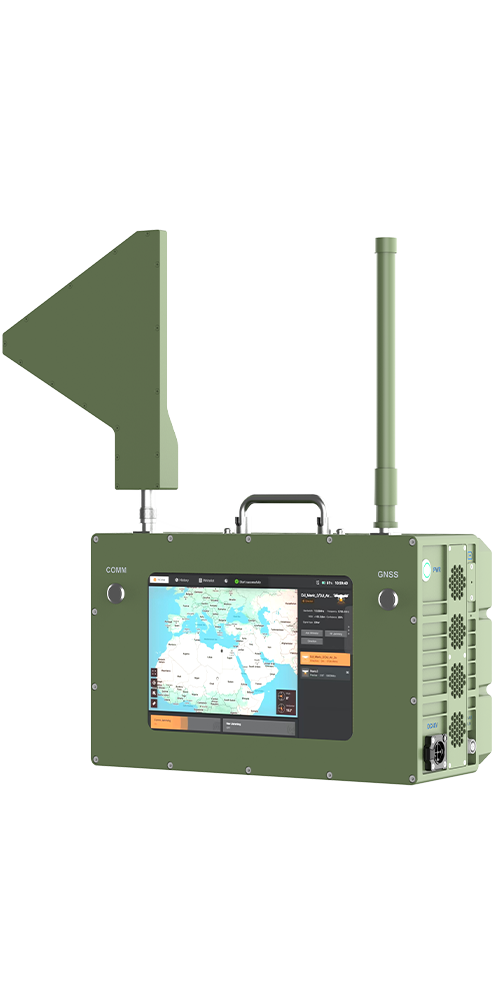

Thor M20
Portable Multi-Mission Defender
✓ Detector and Jammer - 2 in 1
High Integration, a single device can do drone detection and countermeasure both
✓ Long Range
Detection radius ≥5km, jamming radius ≥3km
✓ Ultra-long Battery Life
Equipped with large-capacity rechargeable battery
Airport
Critical Facility
Military Unit
Petrochemical
Power Plant
Event Security
Thor M20
Thor M20 integrates detection, tracking, positioning and countermeasure functions. A single device can realize the whole process of drone control.
Thor M20 supports ultra long jamming radius, up to 3km. And the jamming frequency cover 433MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 1.6GHz, 2.4GHz, 5.2GHz, 5.8GHz.
Airport Application
Important Facility
Airport Solution
Function
Detection Frequency
300MHz-6000MHz
Direction Finding Accuracy
≤30°(spectrum), ≤0.5°(protocol)
Detection Radius
Max 5km
Jamming Frequency
433M/800M/900M/1.2G/1.4G/1.6G/2.4G/5.2G/5.8G
Jamming Radius
Max 3km
Response Time
≤2s
Azimuth Accuracy of Detection
≤3°
Appearance
Screen
10.1 inch, touchable
Working Time
Built-in battery: detection time for 1h; jamming time for 30mins
External battery: detection time for 5h; jamming time for 40mins
Customizable external battery: detection time for 10h; jamming time for 2h
Power Supply
Built-in battery/ Power adapter
Power Consumption
Max 500w
Protection Level
IP65
Working Temperature
-20℃~+55℃
Weight
8KG
